AH24102.H=180 A=78° LVD Press Brake Punches
MOD.AH24102.H=180
Tool System：LVD Style Press Brake Tooling
Height：180mm
Angle：78°
Radius：R1、R2
Maximum Loading：50Ton/m
Length and weight：550mm/12.2kg、510mm/11.3kg
Products Detail
Material：42CrMo=42CrMo4=4140
General Hardness：HRC48°±2
Induction Hardened：HRC54°-58°
Surface Tolerance：±0.03mm
Sectioned：AVAILABLE
OEM & ODM Service：AVAILABLE
CUSTOMIZE & DESIGN Service：AVAILABLE

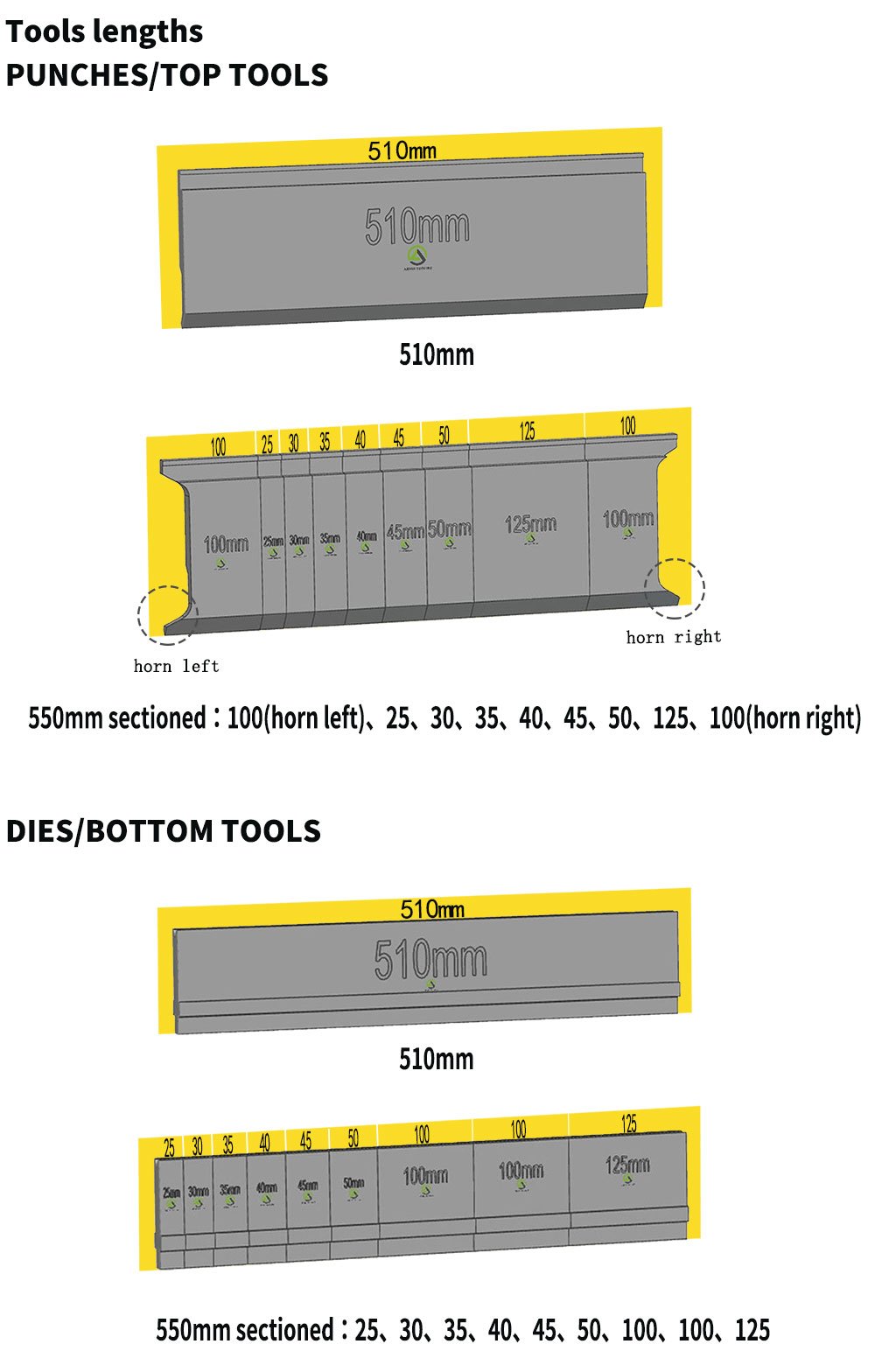

Total：550mm，Available sections：100(Left). 25,30,35,40,45,50,125.100(Right)
Total：510mm
