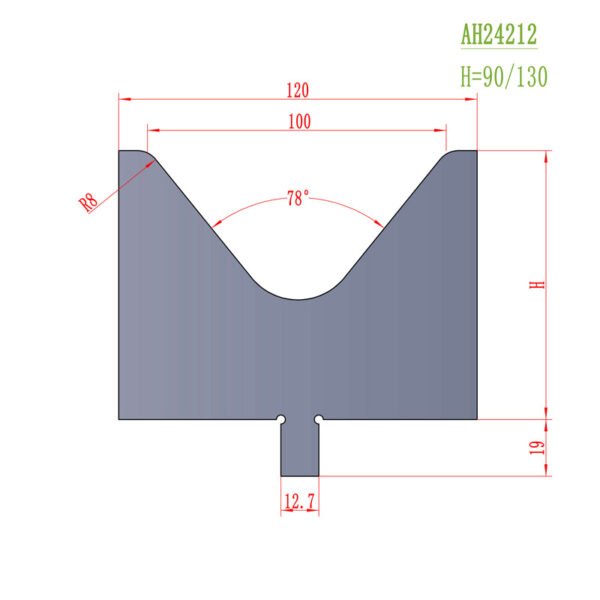

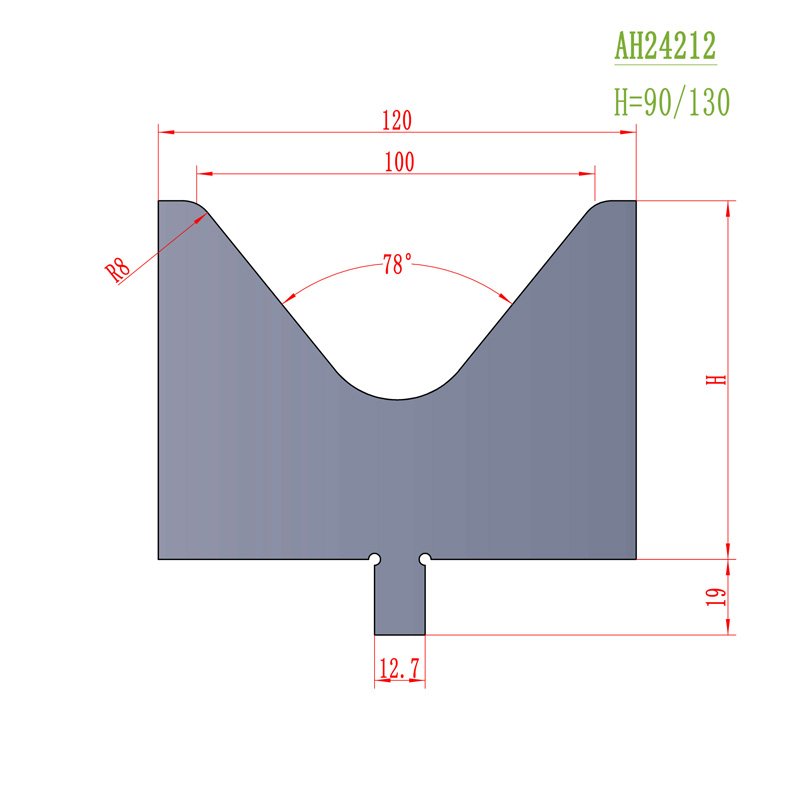

AH24212.H=90/130 V100 A=78° LVD Press Brake Dies

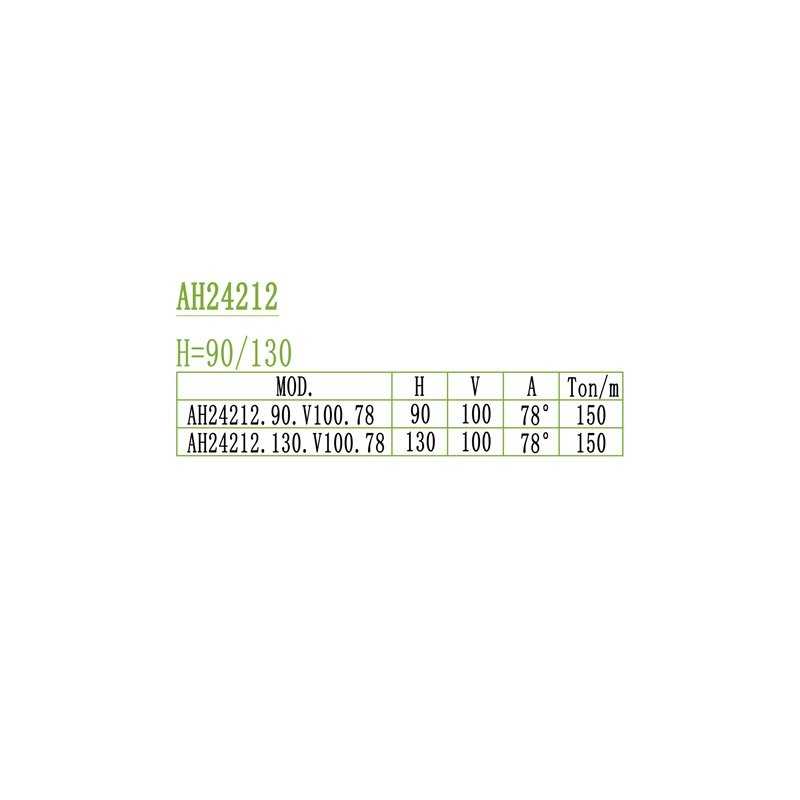

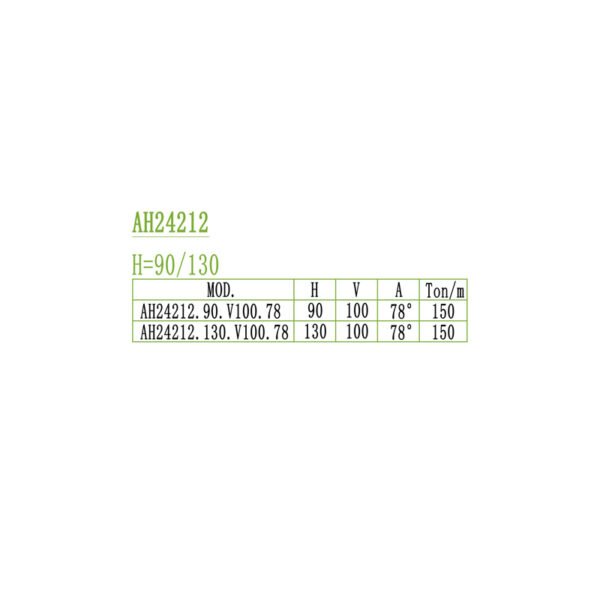

MOD.AH24212.H=90/130
Tool System：LVD Style Press Brake Tooling
Height：90mm、130mm
Die Opening：100mm
Angle：78°
Maximum Loading：150Ton/m
Length and weight：
H=90
550mm/34.9kg、510mm/32.3kg
H=130
550mm/55.6kg、510mm/51.6kg
Products Detail
Material：42CrMo=42CrMo4=4140
General Hardness：HRC48°±2
Induction Hardened：HRC54°-58°
Surface Tolerance：±0.03mm
Sectioned：AVAILABLE
OEM & ODM Service：AVAILABLE
CUSTOMIZE & DESIGN Service：AVAILABLE
Total：550mm，Available sections：25,30,35,40,45,50,100,100,125
Total：510mm
