AH25107.H=220 A=86° Trumpf Press Brake Punches
MOD.AH25107.H=220
Tool System：Trumpf System Press Brake Tooling
Height：220mm
Angle：86°
Radius：R0.5、R1、R2
Maximum Loading：120Ton/m
Length and weight：550mm/34.4kg、500mm/31.3kg
Products Detail
Material：42CrMo=42CrMo4=4140
General Hardness：HRC48°±2
Induction Hardened：HRC54°-58°
Surface Tolerance：±0.03mm
Sectioned：AVAILABLE
OEM & ODM Service：AVAILABLE
CUSTOMIZE & DESIGN Service：AVAILABLE

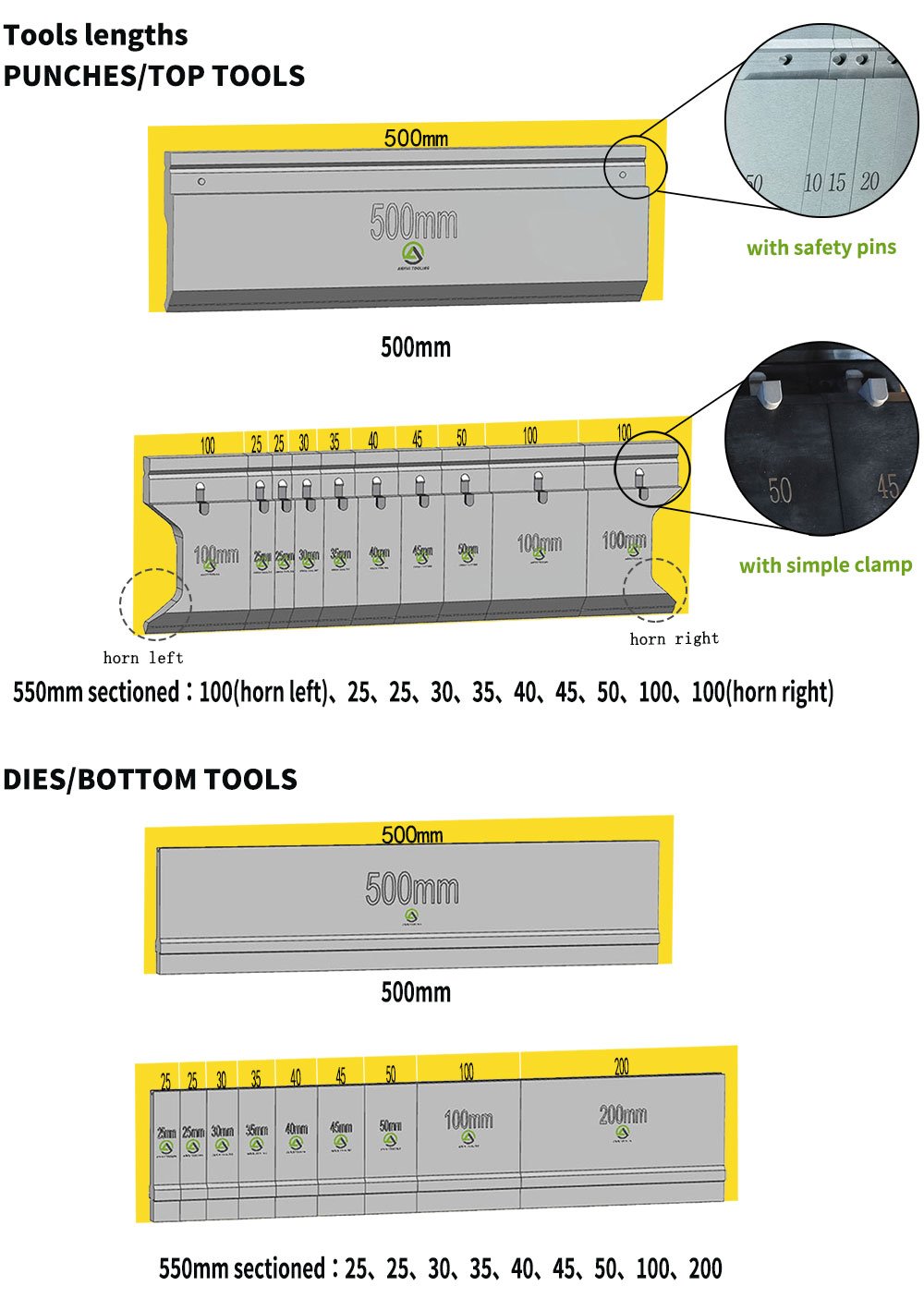

Total：550mm，Available sections：100(Left). 25,25,30,35,40,45,50,100.100(Right)
Total：100mm、200mm、300mm、500mm
