AH27101.H=106 A=85°,80° American Press Brake Punches
MOD.AH27101.H=106
Tool System：American Style Press Brake Tooling
Height：106mm
Angle：85°、80°
Radius：R0.4、R0.8、R1.6
Maximum Loading：90Ton/m
Length and weight：550mm/13.2kg、515mm/12.4kg
Products Detail
Material：42CrMo=42CrMo4=4140
General Hardness：HRC48°±2
Induction Hardened：HRC54°-58°
Surface Tolerance：±0.03mm
Sectioned：AVAILABLE
OEM & ODM Service：AVAILABLE
CUSTOMIZE & DESIGN Service：AVAILABLE

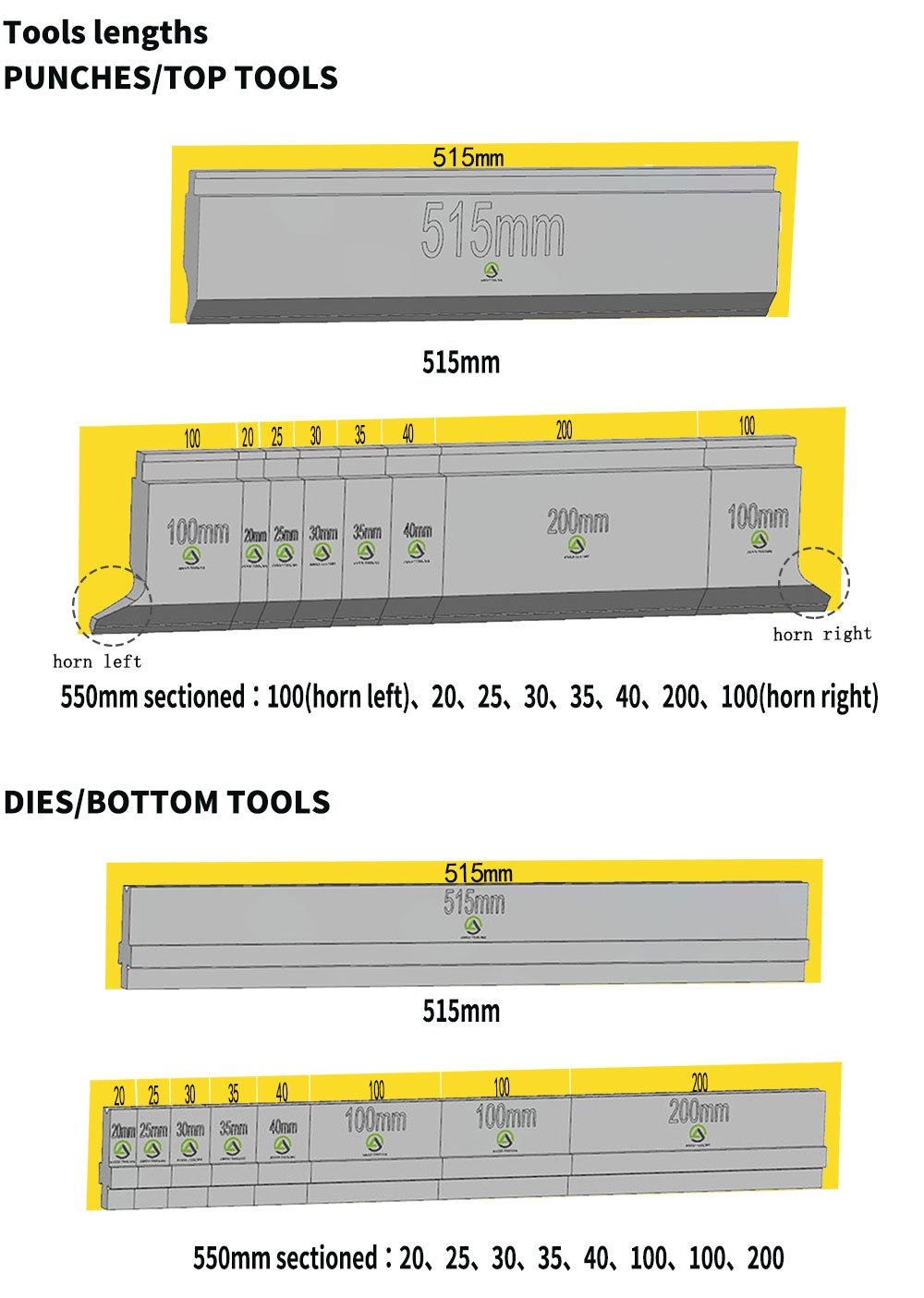

Total：550mm，Available sections：100(Left). 20,25,30,35,40,200.100(Right)
Total：515mm
